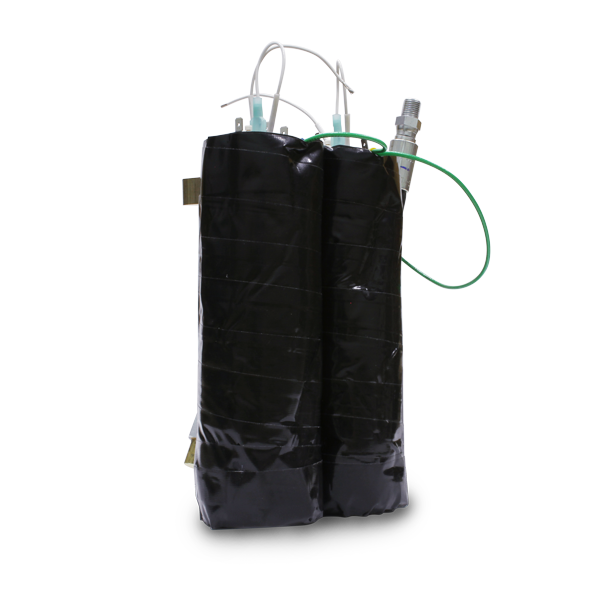

REAL HEAT™ Heating System Technical Info
Print
Modified on: Wed, 29 Apr, 2020 at 11:08 AM
600 W | 1,000 W |
Part # A905A | Part # A901
|
| |
Draws 5.2 amps | Draws 8.7 amps |
Used in: S-300H, 1003LX, LTD3-LX | Used in: 8070 |
230V machines use part # A905B. A905B draws 2.6 amps. | 230V machines use part # A904A. A904A draws 4.3 amps. |
1,200 W | 1,600 W | 2,000 W |
Part #A907 | Part #A908
| Part #A902 |
| | |
Draws 10.4 amps | Draws 13.9 amps | Draws 17.4 amps |
Used in: HP60, HP120, 80-120, 240-120, 2002CS, 1001LX-200 | Used in: 1003DX, LTD3 | Used in: 1001DX-200 |
230V machines use part # A907A. A907A draws 5.2 amps.
| 230V machines use part # A908A. A908A draws 7 amps.
| 230V machines use part # A902A. A902A draws 8.7 amps.
|
