This article covers converting Speedsters from using either the electronic shut-off switch or the ball float to using the electromechanical float shut-off.



For 115V machines


For 230V machines

use kit # A116


use kit # A116A

Kit Includes:
  • 2x E400 float switches
  • 2x E632 float switch relays (115V)
  • PH633 PVC pipe
    - 2x 7" length
    - 4x 5" length
    - 2x 1" length
  • 2x G097 screen mesh filter
  • 2x G003 foam filter
  • 2x G165 relay covers
  • 2x P502 PVC adapters
  • 4x P503 45º PVC elbows
  • 2x P520 threaded PVC adapters
  • 4x H186 Phillips screws
  • 2x H212 flat washers
  • 2x H314 1 1/2" lock nuts
  • 2x H221 1/2" lock nuts
  • 4x H273 keps nuts
  • 1x H217 hose clamp
  • 2x H220 cord strain relief fittings
  • 4x E506 14 gauge slide terminals
  • 4x E507 14 gauge wire connectors
  • 4x E509 16-14 gauge slide terminals
  • 4x E797 12 gauge wire connectors
  • 6x PH602 14 gauge white wire
  • 2x PH622 14 gauge white/red wire
  • 2x PH630 14 gauge yellow wire
  • 2x PH631 14 gauge brown wire
  • 4x PH653 12 gauge black wire

Kit Includes:
  • 2x E400 float switches
  • 2x E632A float switch relays (230V)
  • PH633 PVC pipe
    - 2x 7" length
    - 4x 5" length
    - 2x 1" length
  • 2x G097 screen mesh filter
  • 2x G003 foam filter
  • 2x G165 relay covers
  • 2x P502 PVC adapters
  • 4x P503 45º PVC elbows
  • 2x P520 threaded PVC adapters
  • 4x H186 Phillips screws
  • 2x H212 flat washers
  • 2x H314 1 1/2" lock nuts
  • 2x H221 1/2" lock nuts
  • 4x H273 keps nuts
  • 1x H217 hose clamp
  • 2x H220 cord strain relief fittings
  • 4x E506 14 gauge slide terminals
  • 4x E507 14 gauge wire connectors
  • 4x E509 16-14 gauge slide terminals
  • 4x E797 12 gauge wire connectors
  • 6x PH602 14 gauge white wire
  • 2x PH622 14 gauge white/red wire
  • 2x PH630 14 gauge yellow wire
  • 2x PH631 14 gauge brown wire
  • 4x PH653 12 gauge black wire


Tools Needed:

  • 7/16" socket wrench
  • Flathead screwdriver
  • Adjustable wrench
  • #2 Phillips screwdriver
  • PVC Glue
  • Silicone adhesive
  • 3/4" hole saw or drill bit

1. Take the clear tank lid off the recovery tank. Open up the machine.

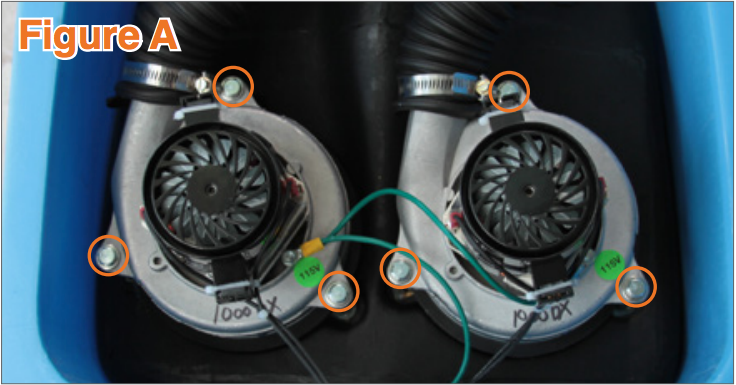

2. Uninstall the two vacuums by unplugging all the wires connected to it and unbolting the 6 bolts using a 7/16” socket (Figure A). Remember how the wires are connected so that you can correctly reconnect them later.

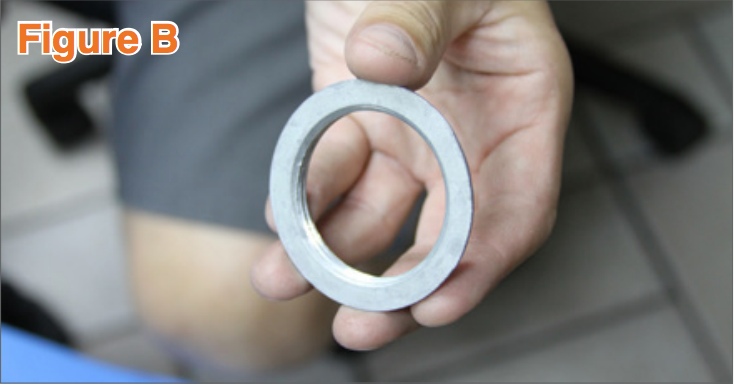

3. Using an adjustable wrench or tongue-and-groove pliers, unscrew the two 1-1/2” lock nuts (Figure B) holding the two vacuum stacks in place. Take out the two old vacuum stacks.

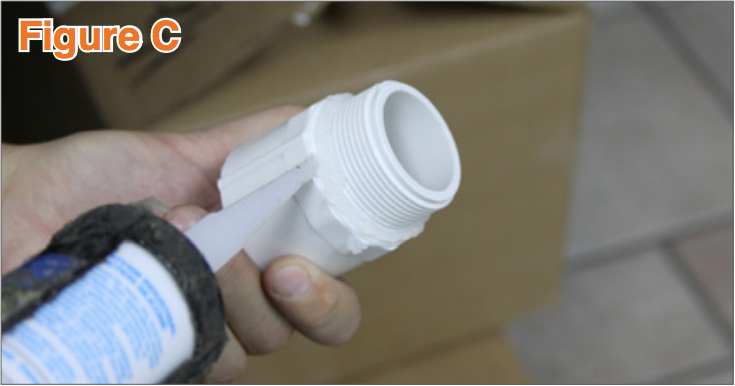

4. Apply silicone on the new 1-1/2” PVC adaptors (Figure C). Push the threaded side of the adaptors thru the two holes on the bottom of the recovery tank. Secure both adaptors in place by screwing on the lock nuts.

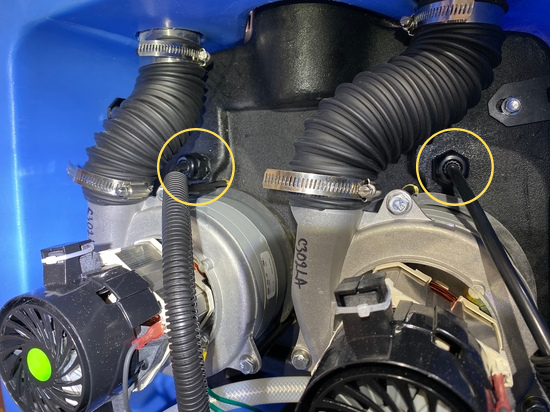

5. Using 3/4" hole saw or drill bit, drill hole into the base of the recovery tank from below as shown. Apply silicone and press the strain relief fitting securely into hole. Important: be sure to completely seal these fittings to avoid water leaking onto vacuum motors, and loss of suction.


6. Insert stacks to adapter inside recovery tank, adjusting to ensure the floats aren't impeded by the body walls or other components. Once the position is correct, remove, apply PVC glue, and reinstall.


7. Feed float electric cord through strain relief fitting.


8. Reinstall vacuum motors.

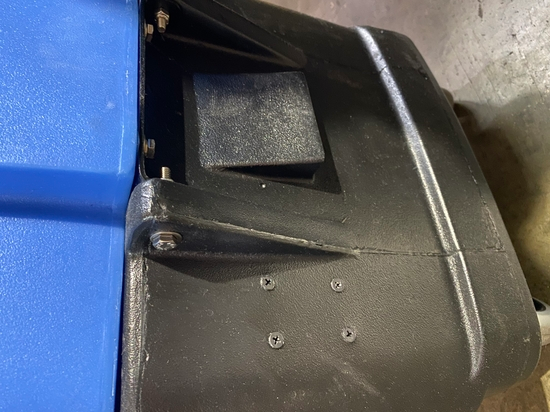

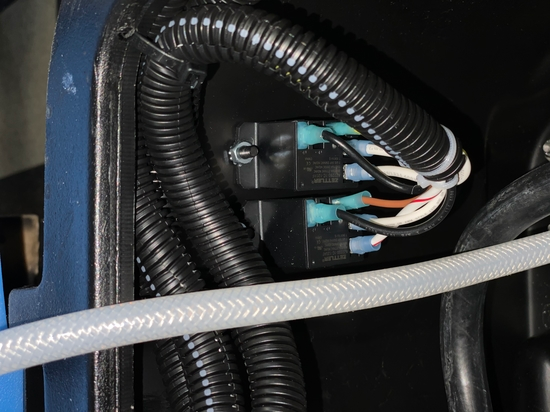

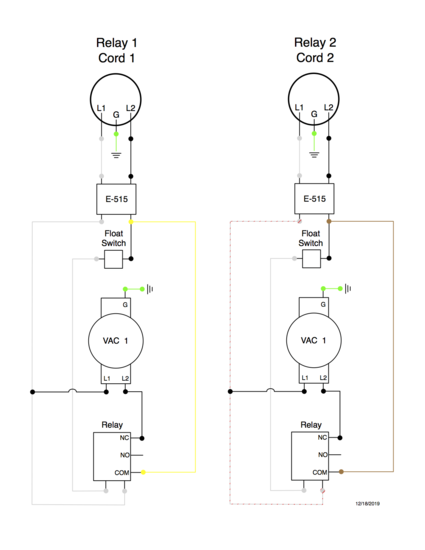

9. Attach wires from relay to the corresponding wires. For reference: (Relay 1: Yellow wire w/ yellow connection connects to yellow from switch and black from the float's wire. White w/ blue connection connects to white wire from the float. White wire w/ yellow connection connects to the white from the switch and either black wire from the vacuums. Black connects to the remaining black wire from the vacuum) (Relay 2: Brown wire w/ yellow connection connects to brown from switch and black from the float's wire. White w/ blue connection connects to white wire from the float. White wire w/ yellow connection connects to the white from the switch and either black wire from the vacuums. Black connects to the remaining black wire from the vacuum)
