Technical specifications for diaphragm pumps used in Mytee equipment.
| Part # C305 | Part # C322D | Part # C381 |
|---|---|---|
 |  |  |

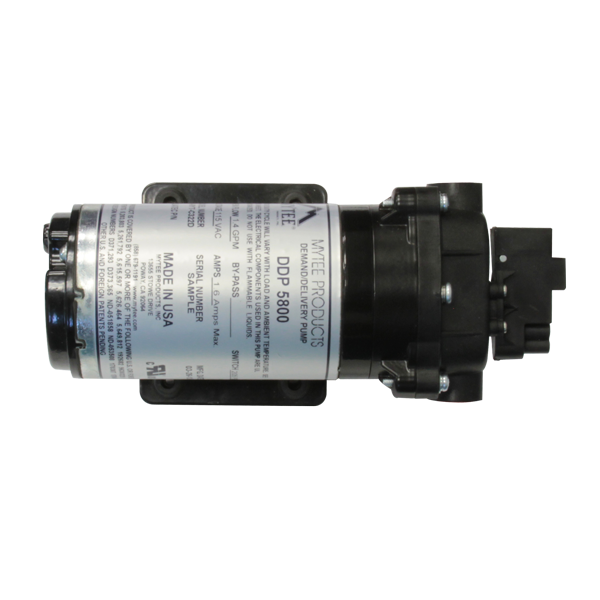

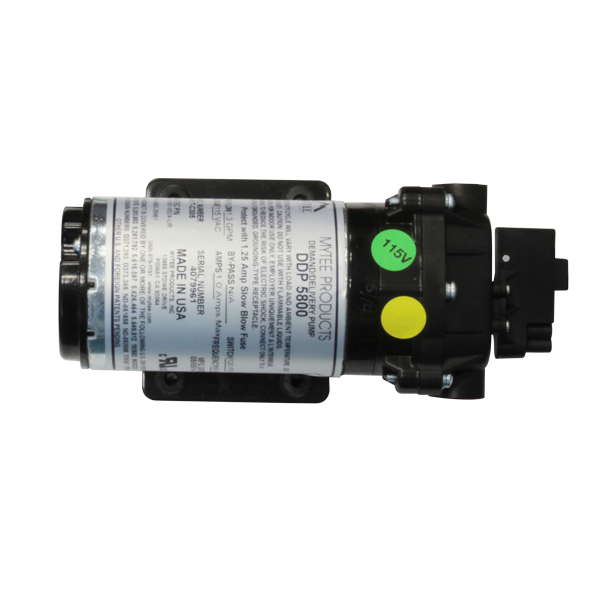

120 PSI, 1.3 GPM 115V Draws 0.95 amps @ 115V | 220 PSI w/ 190 PSI switch 115V Draws 1.45 amps @ 115V | 60 PSI, 3.3 GPM 115V Draws 0.7 amps @ 115V |
Used in: HP120, HP60, 8070, 2002CS, 80-120 | Used In: 1000DX-200 and 1001DX200 | Used as pump-out in: LTD3, LTD5, LTD12, 7303 |
230V machines use Part # C306. C306 draws 0.48 amps. | 230V machines use Part # C323D. C323D draws 0.73 amps. | 230V machines use Part # C381A. C381A draws 0.35 amps. |
| Part # C324 | Part # C361 |
|---|---|
 |  |

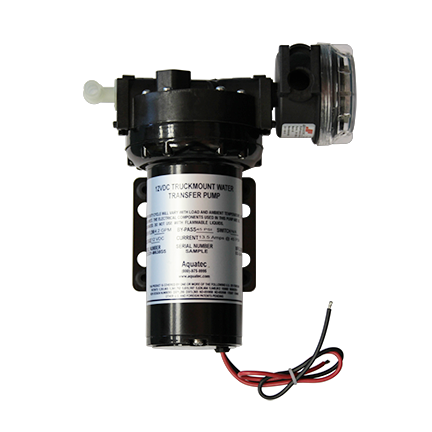

60 PSI 1 GPM 115V Draws 0.75 amps @ 115V | 45 PSI, 5.3 GPM 12V |
| Used in: ECO14-PRO, ECO17-PRO, ECO-13, ECO-17 | Transfer Pump for ETM |
230V machines use Part # C325. C325 draws 0.35 amps |
