Follow the instructions to reset a tripped manual sensor on your heater. If the heater continues to trip the manual sensor after reseting, continue with instructions below to replace the automatic sensor (Part # E573).
How to Reset Heaters

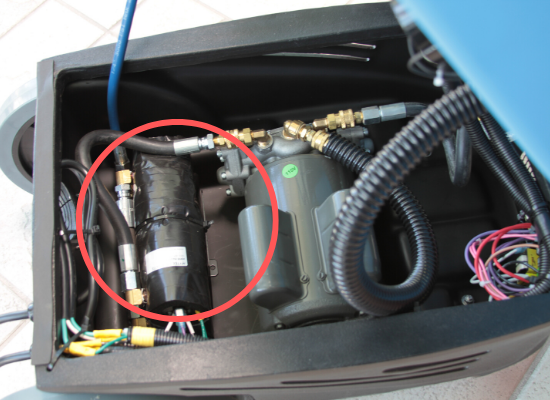

Step 1: Locate the heater inside of the extractor
Step 2: Press the small white and yellow button on the heater. This will reset the heater. If the unit has more than one heater, make sure to reset both heaters
How to Replace Automatic Sensor

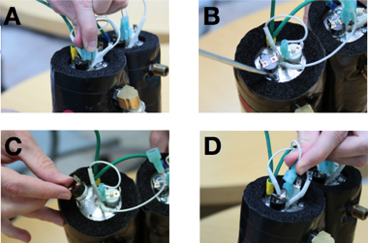

Step 1: Detach the white wire with the blue tip from the sensor (Figure A).
Step 2: Use a phillips head screwdriver to
remove the two screws mounting the sensor (Figure B). Set screws aside for reassembly.
Step 3: Mount the new sensor with the two
screws (Figure C).
Step 4: Reattach the wire (Figure D).
