Technical specifications for the vacuum motors used in Mytee equipment.

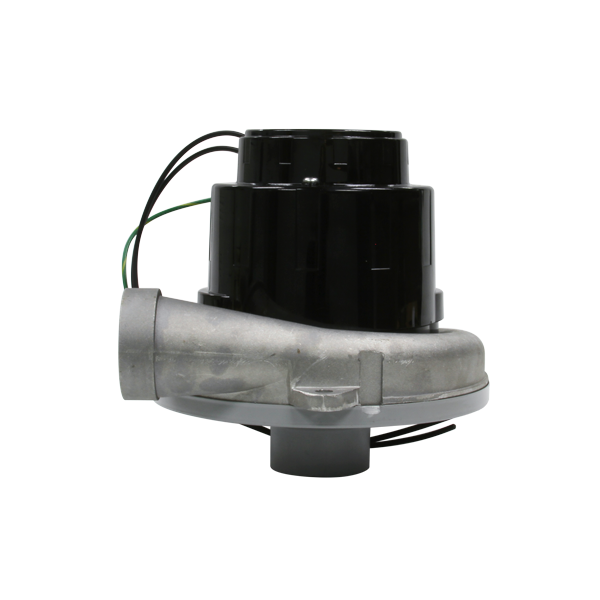

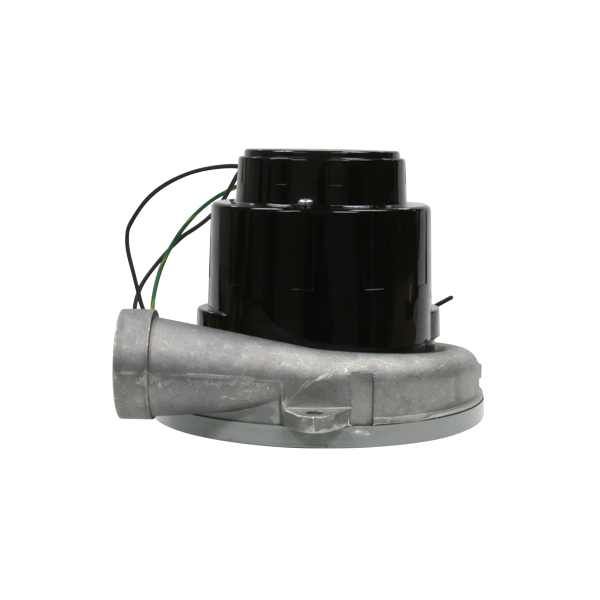

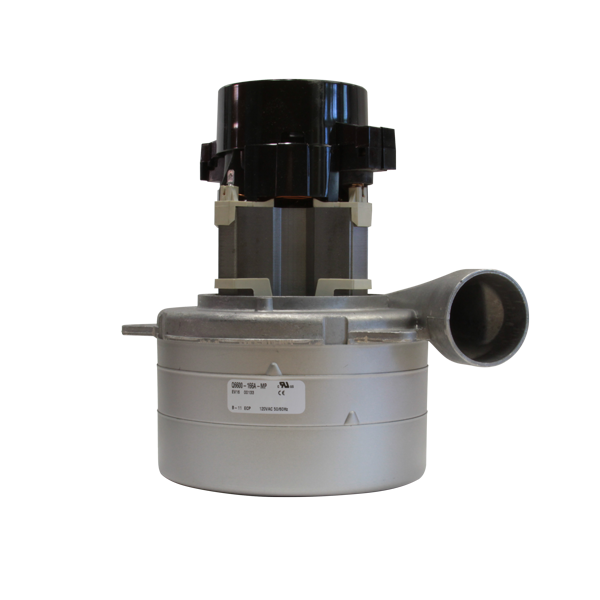

| Part # C302LA | Part # C316 | Part # C302P |
|---|---|---|
 |  |  |
| 3-Stage Low Amp: Tangential 100 CFM, 130" water lift Draws 9.8 amps @ 115V | 2-Stage - Peripheral 96 CFM, 84” water lift Draws 6.5 amps @ 115V | 3-Stage Peripheral 100 CFM, 125” water lift Draws 10.6 amps @115V |
Used in: HP60, HP120, 80-120, 1000DX-200, 1001DX-200, 1003DX, LTD3, LTD12, 8070 (pre 2014) | Used in: S-300, S-300H | Used in: 8070 (2014 and later) |
| 230V machines use Part # C304LA. C304LA draws 5.4 amps | 230V machines use Part # C316A. C316A draws 3.7 amps | 230V machines use Part # C304P. C304P draws 5.3 amps |
| Part # C302A | Part # C347 | Part # C348 |
|---|---|---|
 |  |  |
| 3 Stage High Performance: Tangential 113 CFM, 145" water lift Draws 12.6 amps @115V | LX Hybrid Ametek Vacuum 173 CFM, 113″ water lift Draws 15 amps @ 115V | LX Hybrid Ametek Vacuum w/ inlet tube 173 CFM, 113″ water lift Draws 15 amps @ 115V |
| Used in: Old Models (1005DX, LTD5, SC-9, AIR23, 7303) | Used in: 1005LX, 7303LX, ETM-LX-115, LTD5-LX | Used in: 1005LX, 7303LX, ETM-LX-115, LTD5-LX, 7000LX |
| 230V machines use Part # C304 C304 draws 6.4 amps | 230V machines use Part # C347A. C347A draws 7.5 amps | 230V machines use Part # C348A. C348A draws 7.5 amps |
